Preventing Diesel Soot Staining on Painted Hulls

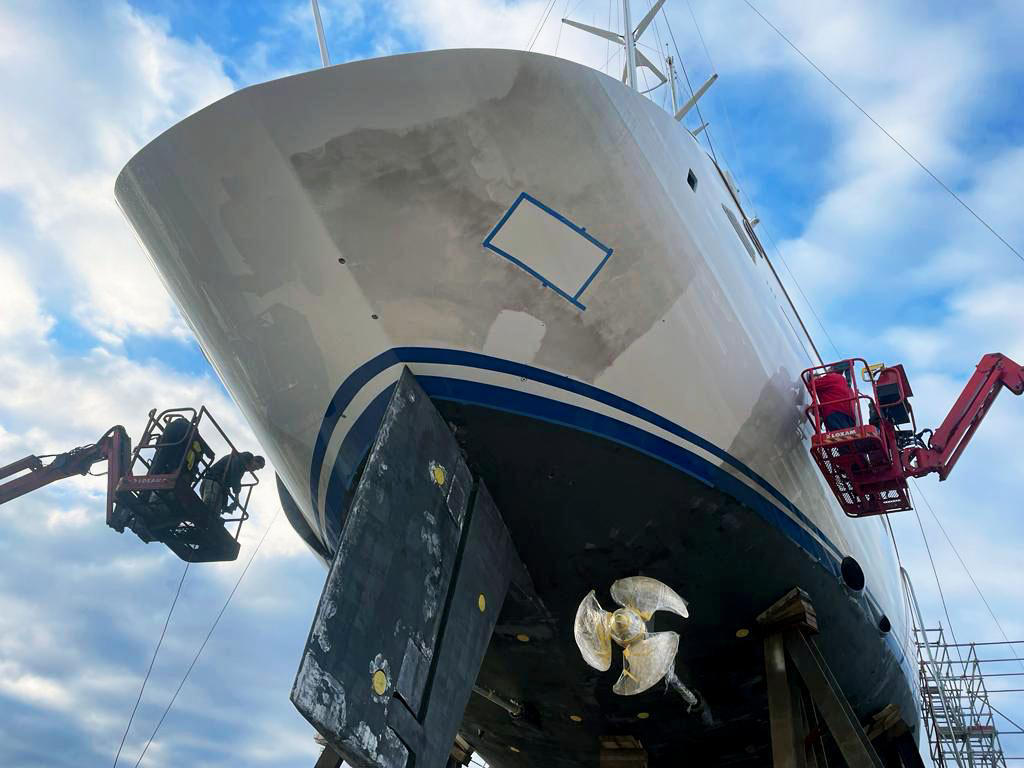

Diesel-powered vessels, and vessels running diesel generators at port, commonly develop soot staining on hulls and topsides. This is particularly problematic on polyurethane and polyester paint systems, where partially combusted exhaust can bond to the surface and become difficult to remove.

Conventional cleaning is often ineffective. Degreasers and scrubbing usually do not remove the staining completely, so operators often resort to repeated polishing or compounding. That approach removes paint film, reduces gloss, and can shorten coating life. In severe cases, aggressive abrasion can permanently damage the finish and bring repainting forward.

A practical solution is to apply a polysilazane top-coat such as NC-4400 Clearcoat. Its inert nature reduces soot adhesion and helps prevent staining from penetrating into the paint layer. In service, this allows soot contamination to be removed with simple soap and water rather than repeated abrasive correction. The coating can also improve gloss where the underlying paint has been dulled by previous polishing.

Typical service life for NC-4400 is 2 to 5 years. As many marine paint systems have an overall service life of around 5 years, the clearcoat can function as a sacrificial protective layer over the existing finish. When removal is required, the coating can be stripped using NC-7100 Removal Gel, which selectively removes the ceramic coating without damaging the paint underneath. This avoids abrasive removal methods such as sanding.

Typical Remediation Process

Restore the surface first, then coat it.

1. Correct the stained paint using NC-434 Rapid Gelcoat Compound with a firm foam pad.
2. Refine to a swirl-free gloss using NC-326 One Step Restoration Compound or NC-328 Ultrafine Swirl Remover with a soft finishing pad.
3. Clean with a water-based degreaser or boat wash, allow to dry, and wipe with a pre-paint cleaner if available.
4. Mask the area.
5. Apply NC-4400 with a clean, dust-free foam brush in even vertical passes. Avoid over-application, which can cause runs. If rainbow iridescence appears, the film is too thin.

Application should be carried out in dry, low-dust conditions, ideally at 20–28°C and preferably in the morning. The coating becomes touch dry in 6–8 hours, reaches full hardness in about 48 hours, and should be washed with a pH-neutral boat wash after two days to complete cure.

Summary

For vessels exposed to diesel exhaust, a polysilazane clearcoat is a practical way to reduce soot staining, minimise abrasive cleaning, and extend the useful life of the underlying paint system.

Written by Mark Nolde on the 4th April 2025
